Description

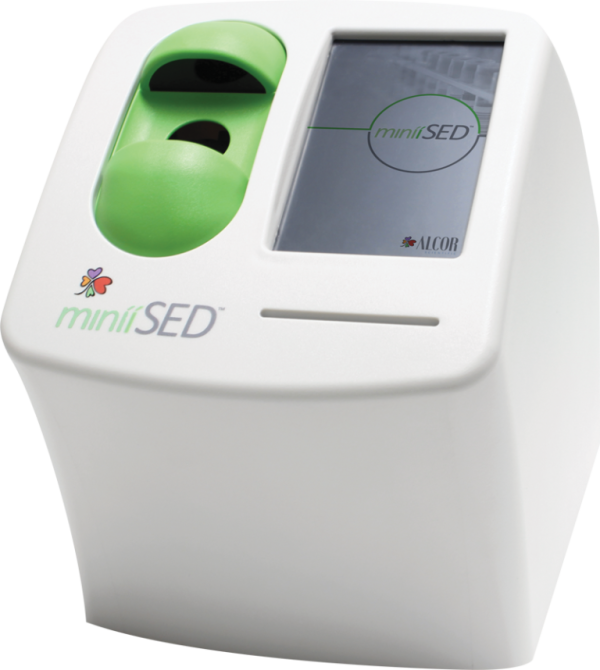

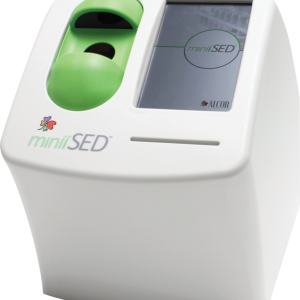

miniiSED® ESR Analyzer: The miniiSED® ESR Analyzer is a state-of-the-art device designed for efficient Erythrocyte Sedimentation Rate (ESR) testing, offering unmatched speed and accuracy. Ideal for low-volume laboratories, miniiSED® utilizes advanced capillary photometry to directly measure red blood cell (RBC) aggregation during rouleaux formation, delivering highly accurate results in just 15 seconds. The device is user-friendly and eliminates the need for disposables or complex sample setups, as primary EDTA tubes can be directly inserted into the instrument. With a compact design and automated processes, miniiSED® significantly reduces hands-on time and improves laboratory efficiency.

Key Features:

• Rapid Results: Provides ESR results in just 15 seconds, streamlining laboratory workflow.
• Automated Testing: Fully automated ESR testing from sampling to results, enhancing convenience.
• Compact Footprint: Space-saving design suitable for small laboratories.
• Direct Sampling: Compatible with primary EDTA tubes, including pediatric tubes, for direct sampling.
• Highly Accurate: Results are highly correlated with the Westergren method, the gold standard for ESR testing.
• No Disposables: Eliminates the need for disposable components, reducing operational costs.
• User-Friendly: Easy to implement with minimal training required.

Specifications:

• Principle of Measure: Photometric Rheology
• Result Range: 1-130 mm/hr
• Sample Capacity: 1 sample
• Test Throughput: Up to 180 tests per hour
• Sample Type: Primary EDTA tube; compatible with pediatric tubes
• Sample Volume: 500 µL of whole blood (100 µL aspirated volume)
• Sample Mixing: Automated on-board mixing
• Quality Control: Compatible with SEDiTROL® Controls
• Barcode Reader: Integrated internal barcode reader
• Printer: Optional external printer available
• Dimensions (H x W x D): 24 x 18 x 26 cm (9.5 x 7.1 x 10.4 in)
• Data Storage Capacity: Over 4 million records
• LIS Connectivity: LAN TCP/IP for seamless integration with Laboratory Information Systems
• Voltage: 100-240VAC
• Frequency: 50-60 Hz
• Power Consumption: 60W

Ordering Information:

• miniiSED® ESR Analyzer: Part No. 112-01017
• Test Cards: Available in quantities of 250, 1000, 2000, and 5000 tests (Part Nos. 112-00250, 112-01000, 112-02000, 112-05000)
• SEDiTROL® Quality Controls: Available in packs of 2 x 4.0 ml and 6 x 4.0 ml (Part Nos. DSC01, DSC06)
• miniiWASH® Wash Fluid: Pack of 4 (Part No. 112-12-003)
• miniiWASTE® Container: Pack of 4 (Part No. 112-12-004)
• ALCOR® Thermal Printer Paper: Pack of 5 (Part No. DS-05233)
• ALCOR® Thermal Printer: (Part No. DS-05240)
