Description

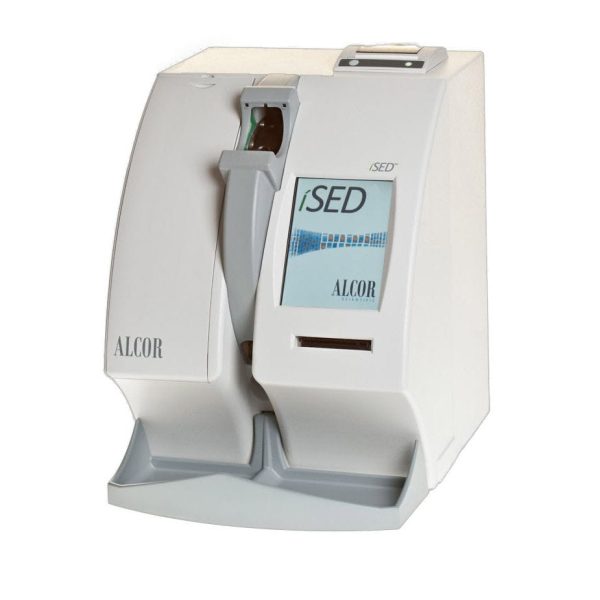

The iSED® ESR Analyzer is a cutting-edge, fully automated system designed to revolutionize the Erythrocyte Sedimentation Rate (ESR) testing process. Utilizing advanced capillary photometry, iSED® directly measures red blood cell (RBC) aggregation during rouleaux formation, delivering results in as little as 20 seconds. The system’s innovative approach significantly enhances laboratory efficiency by reducing hands-on time by more than 96% and cutting turnaround time by up to 94%, compared to the traditional Westergren method.

Designed for ease of use and accuracy, the iSED® analyzer requires no disposables or special sample setup. It supports random access and continuous feed operations, allowing for high throughput with minimal operator intervention. The analyzer is compatible with both standard and pediatric EDTA tubes, ensuring versatility in sample handling. With a user-friendly interface and walk-away automation, the iSED® ESR Analyzer seamlessly integrates into any laboratory workflow, offering reliable and highly correlated ESR results.

Key Features:

• Instant Results: Achieve ESR results within 20 seconds.
• Walk-Away Automation: Less than 3 seconds of hands-on time required, enabling true walk-away operation.
• Direct Sampling: Capable of sampling directly from primary EDTA tubes.
• Minimal Sample Volume: Only 100 µl of aspirated volume needed, with a total sample volume requirement of 500 µl.
• Random Access Loading: Supports random access and continuous feed for efficient processing of up to 180 samples per hour.
• High Correlation: Results are highly correlated to the traditional Westergren method.
• Closed Testing Environment: Designed to minimize the impact of environmental variables on test results.
• No Disposables Required: Eliminates the need for additional consumables, reducing ongoing costs.
• Pediatric Tube Compatible: Supports testing with pediatric tubes, making it suitable for all patient populations.
• User-Friendly Design: Easy to implement and operate, with minimal training required.

Specifications:

• Principle of Measure: Quantitative Capillary Photometry
• Result Range: 1-130 mm/hr
• Sample Capacity: 20 samples (random access loading)
• Test Throughput: Up to 180 tests per hour
• Sample Type: Primary EDTA tube; pediatric tube compatible
• Sample Volume: 500 µl whole blood (100 µl aspirated volume)
• Sample Mixing: Automated on board
• Quality Control: SEDiTROL® Controls
• Barcode Reader: Internal
• Printer: Internal
• Dimensions: 36 x 27 x 35 cm (14.17 x 10.63 x 13.78 inches)
• Data Storage Capacity: >4 million results
• LIS Connectivity: LAN TCP/IP or serial RS232 DB9 port
• Voltage: 100-240VAC
• Frequency: 50-60 Hz
• Power: 60W

Ordering Information:

• iSED® ESR Analyzer: Part No. 112-00101
• Test Cards:
  • 250 tests – Part No. 112-00250
  • 1000 tests – Part No. 112-01000
  • 2000 tests – Part No. 112-02000
  • 5000 tests – Part No. 112-05000
• SEDiTROL® Quality Controls (Levels 1 & 2):
  • Pack of 2 x 4.0 ml – Part No. DSC01
  • Pack of 6 x 4.0 ml – Part No. DSC06
• iWASH® Wash Fluid:
  • Pack of 4 – Part No. 112-12-001
• iWASTE® Container:
  • Pack of 4 – Part No. 112-12-005
  • Pack of 24 – Part No. 112-12-002
• ALCOR® Thermal Printer Paper: Pack of 5 – Part No. DS-05233
